SCN-524/6G

EMC Scanner by Pendulum Instruments (11 more products)
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Pendulum Instruments.

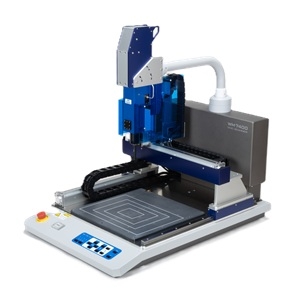

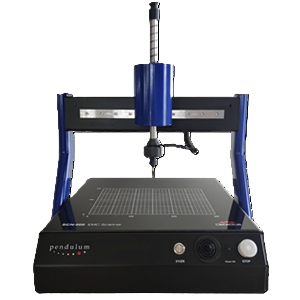

The SCN-524/6G from Pendulum Instruments is a 6 GHz EMC Scanner System (optional extension up to 10 GHz). It enables repetitive and consistent measurements for easy comparative measurements between alternative designs. This scanner is a pre-compliance tool for measurement and analysis of Electromagnetic Interference (EMI). It features a repetitive high-resolution 4D (3D movement plus rotation of the probe head) scanning of radiation with a step size of 100 μm. This scanner is capable of analysis for test objects measuring 270 x 100 mm (W x H) with a scan area of 200 x 100 x 100 mm (4D). It utilizes easy-to-use and feature-rich software let you measure and visualize the intensity and the location of a radiation source at a component level or even inside a component. The results of such measurements can be shown as two or three dimensional colored maps.

The SCN-524/6G is available in an enclosure that measures 550 x 470 x 630 mm and supports VISA compatible communication port (GPIB, USB or LAN) for remote control. This EMC scanner requires an AC supply from 100 to 240 V and consumes 45 W of power.

Product Specifications

Product Details

  • Part Number :
    SCN-524/6G
  • Manufacturer :
    Pendulum Instruments
  • Description :
    6 GHz, 4D EMC Scanner System for Pre-Compliance Testing

General Parameters

  • Dimensions :
    550 x 470 x 630 mm
  • EMC Standards :
    EN 61000-6-1:2019, EN 61000-6-3:2007 and A1, FCC Part 15 subpart B, ICES-001 Issue 4, CE
  • Interface :
    USB Type B, USB 2.0
  • Operating Temperature :
    10 to 35 Degree C
  • Power Consumption :
    45 W
  • Scan Area :
    200 x 100 x 100 mm
  • Scan Speed :
    2.45 Minutes
  • Software :
    Windows 10 or later
  • Step Size :
    0.1 mm
  • Storage Temperature :
    -40 to 71 Degree C
  • Supported Analyzers :
    Visa compatible communication interface
  • Weight :
    13 Kg
  • AC Voltage :
    100 to 240 Vac
  • Frequency :
    100 kHz to 6 GHz
