SA1016
EMC Power Amplifiers by SUNGSAN Electronics & Communications Co., Ltd. (45 more products)
Request Quote
Note: Your Quotation Request will be directed to SUNGSAN Electronics & Communications Co., Ltd..
The SA1016 from SUNGSAN Electronics & Communications Co., Ltd. is a EMC Power Amplifiers with Frequency 5 to 6 GHz, Gain 47 dB, Noise Figure 10 dB, IP3 (dBm) 50 dBm, Saturated Power 50 W. More details for SA1016 can be seen below.
Product Specifications
Product Details
- Part Number :SA1016
- Manufacturer :SUNGSAN Electronics & Communications Co., Ltd.

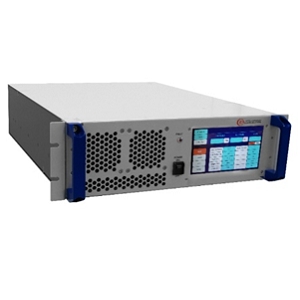

- Description :5000 - 6000 MHz / 50 Watts Solid State Power Amplifier
General Parameters
- Frequency :5 to 6 GHz
- Gain :47 dB
- Noise Figure :10 dB
- Gain flatness :±1 to 1.5 dB
- IP3 (dBm) :50 dBm
- Saturated Power :50 W
- Type :SSPA
- AC Voltage :220 V
- Impedance :50 Ohms
- Return Loss :-10 dB
- Input Return Loss :-10 dB
- EMC Standards :ISO 9001
- Interface :GPIB, RS-232, Ethernet (LAN)
- Applications :Automated Production Test, R&D Bench Test, RF Components Test, RF Burn-In, Antenna Power Aging, Broad Band booster Amplifiers
- Package Type :Benchtop / Rackmount
- Connectors :N Type, N Type - Female
- Input Connector :N Type - Female
- Output connector :SMA - Female
- Cooling Options :Forced Air-Cooling system
- Operating Temperature :0 to 50 Degree C
- Storage Temperature :-40 to 85 Degree C
