IPG 2554 S
Ring Wave Generator by HILO-Test (4 more products)The IPG 2554 S from HILO-Test is a Ring Wave Generator with Open Circuit Voltage 0.2 to 3 kV, Oscillation Frequency 100 kHz to 1 MHz, Short Circuit Current 1.25 to 12.5 A, Supply Voltage 250 VAC. More details for IPG 2554 S can be seen below.
Product Specifications
Product Details
- Part NumberIPG 2554 S
- ManufacturerHILO-Test
- DescriptionSlow Damped Oscillatory Wave Generator
General Parameters
- Coupling Capacitor33 to 500 nF
- Current16 A
- Dimensions450 x 330 x 500 mm
- Display7”, capacitive touch panel
- EMC StandardsIEC 61000-4-18
- In-built CDNYes
- Input Connector4 mm connector
- InterfaceUSB
- Output connector4 mm connector
- Output Impedance200 Ohms
- PolarityPositive, Negative
- Repetition Rate40 to 400 Hz
- Rise Time75 nS
- Test Time1 to 1000 s
- Weight35 kg
- Open Circuit Voltage0.2 to 3 kV
- Oscillation Frequency100 kHz to 1 MHz
- Short Circuit Current1.25 to 12.5 A
- Supply Voltage250 VAC
Technical Documents
- Datasheet
Related Ring Wave Generators
-

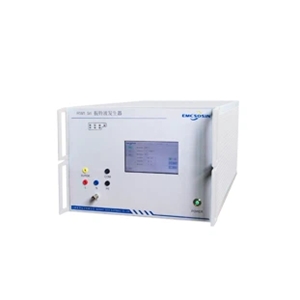

Ring Wave Generator from 0 to 4 kV
Lisun Group -

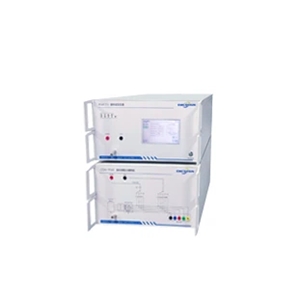

0 to 4 kV Ring Wave Generator
