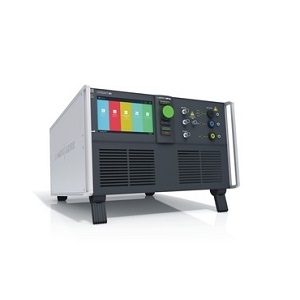

compact NX7 s-1-300-16
Multi-Function Generator by AMETEK CTS GmbH (47 more products)The compact NX7 s-1-300-16 from AMETEK CTS GmbH is a Multi-Function Generator with Pulse Duration 20 to 50 uS, Supply Voltage 300 V, Surge Voltage 7 kV. More details for compact NX7 s-1-300-16 can be seen below.
Product Specifications
Product Details
- Part Number :compact NX7 s-1-300-16
- Manufacturer :AMETEK CTS GmbH
- Description :Multifunctional Test Generator For Transients - Surge, 300 V, 16 A, 19", 6 HU
General Parameters
- Applications :Industry, Telecom, Medical, Components, Broadcast, Residential, Renewable Energy, Automotive
- Coupling :Line to line, Line(s) to ground, Line to PE
- Current :16 A
- Dimensions :19"/6 HU, 500 mm depth
- Display :7“ touch screen
- EMC Standards :ANSI/IEEE C62.41, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-11, IEC 61000-4-12, IEC 61000-4-29, EN 61000-6-1, EN 61000-6-2, ECE-R10, EN 300329, EN 300340, EN 300342-1, EN 300386 V1.3.2, EN 301489-1, EN 301489-17, EN 301489-24
- Functions :Surge Combination Wave
- Interface :USB A, USB B, LAN
- Operating Temperature :10 to 35 Degree C
- Phase Synchronization :0 to 360 Degrees, Resolution 1 Degree
- Polarity :Positive, Negative, Alternate
- Power Consumption :75 W
- Repetition Time :1 to 9999 s
- Storage Temperature :-10 to 60 Degree C
- Test duration :0:01 min - endless
- Trigger :Automatic, Manual, External
- Weight :30 kg
- Pulse Duration :20 to 50 uS
- Supply Voltage :300 V
- Surge Voltage :7 kV
