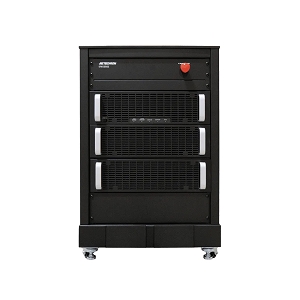

8712
EMC Power Amplifiers by AE Techron (33 more products)The 8712 from AE Techron is a EMC Power Amplifiers with Frequency DC to 250 kHz, Power (dBm) 66.02 to 73.8 dBm, Power (W) 4 to 24 kW, Supply Voltage 13.5 to 48 V, AC Voltage 60 to 230 Vac. More details for 8712 can be seen below.
Product Specifications
Product Details
- Part Number :8712
- Manufacturer :AE Techron
- Description :Ultra-Wide-Bandwidth, High-Power Switch-Mode Amplifiers
General Parameters
- Frequency :DC to 250 kHz
- Power (dBm) :66.02 to 73.8 dBm
- Power (W) :4 to 24 kW
- Type :Power Amplifier
- Supply Voltage :13.5 to 48 V
- AC Voltage :60 to 230 Vac
- Current :180 A
- Impedance :2.7 mOhms
- Package Type :Benchtop / Rackmount
- Connectors :BNC
- Weight :370 lbs
- Cooling Options :Internal forced-air fans
- Operating Temperature :5 to 50 Degree C
Technical Documents
- Datasheet
