HS-062-UBR-10A-SF
EMC Antenna by Fei Teng Wireless Technology (93 more products)
Request Quote
Note: Your Quotation Request will be directed to Fei Teng Wireless Technology.
The HS-062-UBR-10A-SF from Fei Teng Wireless Technology is a EMC Antenna with Frequency 12.4 to 18 GHz, Gain 10 dB, Input Power 200 W, Horizontal BW 54 Degree, Vertica BW 54 Degree. More details for HS-062-UBR-10A-SF can be seen below.
Product Specifications
Product Details
- Part Number :HS-062-UBR-10A-SF
- Manufacturer :Fei Teng Wireless Technology

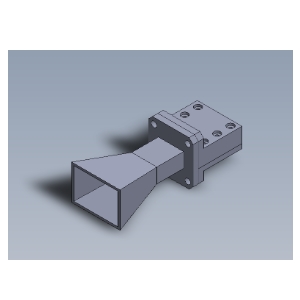

- Description :WR62 12.4 to 18 GHz 10 dbi Standard Gain Waveguide Horn Antenna SMA-Female Connector Flange: UDR
General Parameters
- Frequency :12.4 to 18 GHz
- Type :Horn
- Directionality :Directional
- Gain :10 dB
- Input Power :200 W
- VSWR :1.25:1
- Horizontal BW :54 Degree
- Vertica BW :54 Degree
- Material :Aluminium
- Applications :EMI/EMC Testing, Antenna Gain Measurements
- Dimensions :33 x 36 x 93 mm
- Connectors :SMA, SMA - Female
- Waveguide :WR-62
- Weight :0.063 Kg
- Note :Flange : UG-140/U, UG541A/U, UG-2664/U
