HS-034-UBR-10A-KF
EMC Antenna by Fei Teng Wireless Technology (93 more products)
Request Quote
Note: Your Quotation Request will be directed to Fei Teng Wireless Technology.
The HS-034-UBR-10A-KF from Fei Teng Wireless Technology is a EMC Antenna with Frequency 22 to 33 GHz, Gain 10 dB, Input Power 200 W, Horizontal BW 54 Degree, Vertica BW 54 Degree. More details for HS-034-UBR-10A-KF can be seen below.
Product Specifications
Product Details
- Part Number :HS-034-UBR-10A-KF
- Manufacturer :Fei Teng Wireless Technology

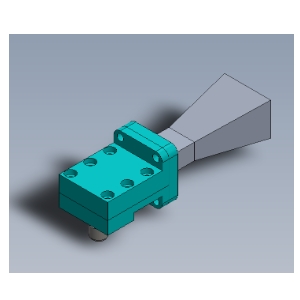

- Description :WR34 Standard Gain Waveguide Horn Antenna, 22 to 33 GHz, 10dbi gain, UBR UG-1530/ U Flange
General Parameters
- Frequency :22 to 33 GHz
- Type :Horn
- Directionality :Directional
- Gain :10 dB
- Polarization :Vertical, Horizontal
- Input Power :200 W
- VSWR :1.25:1
- Horizontal BW :54 Degree
- Vertica BW :54 Degree
- Applications :EMI/EMC Testing, Antenna Gain Measurements
- Dimensions :28.6 x 22.2 x 75 mm
- Connectors :K Type, K Type - Female
- Waveguide :WR-34
- Weight :0.036 Kg
- Note :Flange : UG-1530/U
