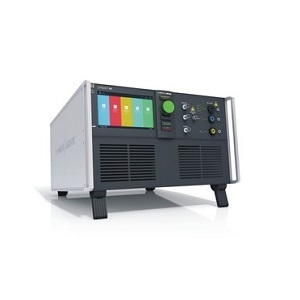

compact NX7 bs-1-300-16

EFT / Burst Generator by em test (59 more products)
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to em test.

The compact NX7 bs-1-300-16 from em test is a EFT / Burst Generator with Burst Voltage 5.5 kV, Surge Voltage 7 kV, Burst Duration 0.1 to 9999 ms, Pulse Duration 20 to 50 uS, Supply Voltage 300 V. More details for compact NX7 bs-1-300-16 can be seen below.

Product Specifications

Product Details

  • Part Number :
    compact NX7 bs-1-300-16
  • Manufacturer :
    em test
  • Description :
    Multifunctional Test Generator For Transients - Burst, Surge, 300 V, 16 A, 19", 6 HU

General Parameters

  • EMC Standards :
    ANSI/IEEE C62.41, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-11, IEC 61000-4-12, IEC 61000-4-29, EN 61000-6-1, EN 61000-6-2, ECE-R10, EN 300329, EN 300340, EN 300342-1, EN 300386 V1.3.2, EN 301489-1, EN 301489-17, EN 301489-24
  • Multi Function Generator (Yes/No) :
    Multi Function
  • Functions :
    EFT / Burst, Surge Combination Wave
  • Polarity :
    Positive, Negative, Alternate
  • Burst Voltage :
    5.5 kV
  • Surge Voltage :
    7 kV
  • Burst Duration :
    0.1 to 9999 ms
  • Test duration :
    0:01 min - endless
  • Pulse Duration :
    20 to 50 uS
  • Pulse Width :
    50 nS
  • Repetition Time :
    10 ms to 9999 s
  • Rise Time :
    5 nS
  • Coupling :
    L, N, PE all combinations, Line to line, Line(s) to ground, Line to PE
  • Spike Frequency :
    1 Hz to 1 MHz
  • Phase Synchronization :
    0 to 360 Degrees, Resolution 1 Degree
  • Trigger :
    Automatic, Manual, External
  • Source Impedance :
    50 Ohms
  • Supply Voltage :
    300 V
  • Current :
    16 A
  • Interface :
    USB A, USB B, LAN
  • Display :
    7“ touch screen
  • Power Consumption :
    75 W
  • Dimensions :
    19"/6 HU, 500 mm depth
  • Applications :
    Industry, Telecom, Medical, Components, Broadcast, Residential, Renewable Energy, Automotive
  • Operating Temperature :
    10 to 35 Degree C
  • Storage Temperature :
    -10 to 60 Degree C
  • Weight :
    30 kg
