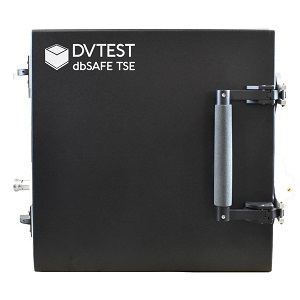

dbSAFE TSE - Dual Cavity Hybrid
Shielded Test Enclosure by DVTEST (35 more products)The dbSAFE TSE - Dual Cavity Hybrid from DVTEST is a Shielded Test Enclosure with Frequency 300 MHz to 18 GHz, Isolation 80 to 100 dB, AC Voltage 120 to 230 V, DC Voltage 0 to 100 V. More details for dbSAFE TSE - Dual Cavity Hybrid can be seen below.
Product Specifications
Product Details
- Part Number :dbSAFE TSE - Dual Cavity Hybrid
- Manufacturer :DVTEST
- Description :Thermal test enclosure, -90°C to +220 °C, ≥100 dB, 300 MHz - 18 GHz
General Parameters
- Type :Bench-top / Table-Top
- Configuration :Portable
- Opening Type :Front
- Frequency :300 MHz to 18 GHz
- Isolation :80 to 100 dB
- Absorber :Broadband Lossy Foam Absorber
- Applications :Thermal, Cellular, 4G/LTE, 5G, 802.11 a/b/g/n/ac/ax, Wi-Fi, Zigbee, NFC, EMC/EMI
- Chambers :Single Chamber
- Interface :USB 2.0 / 3.0 / 3.1, HDMI, Ethernet 1G/10G+PoE
- Connectors :SMA, N, BNC, TNC
- Internal Dimensions :36 x 32 x 36 Inches (W x D x H), 914.4 x 812.8 x 914.4 mm (W x D x H)
- External Dimensions :38.25 x 36.25 x 38.25 Inches (W x D x H), 971.55 x 920.75 x 971.55 mm (W x D x H)
- Interior Depth :32 Inches
- Interior Height :32 Inches
- Interior Width :36 Inches
- Operation :Manual
- Package Type :Benchtop
- Antenna Coupler :dbCoupler Standard or Mini
- AC Voltage :120 to 230 V
- DC Voltage :0 to 100 V
- RoHS :Yes
- Additional Specs :Tri-Shield© coated to MIL-DTL-5541F
