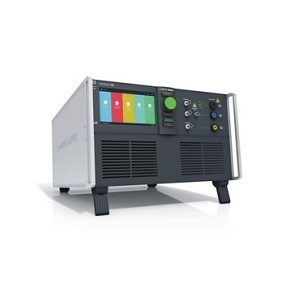

compact NX7 bsprt-1-300-32
Multi-Function Generator by AMETEK CTS GmbH (47 more products)The compact NX7 bsprt-1-300-32 from AMETEK CTS GmbH is a Multi-Function Generator with Burst Duration 0.1 to 9999 ms, Burst Voltage 5.5 kV, Pulse Duration 20 to 720 uS, Ringwave Voltage 7 kV, Supply Voltage 300 V. More details for compact NX7 bsprt-1-300-32 can be seen below.
Product Specifications
Product Details
- Part Number :compact NX7 bsprt-1-300-32
- Manufacturer :AMETEK CTS GmbH
- Description :Multifunctional Test Generator For Transients - Burst, Surge, Power Fail, Ringwave, Telecom Surge, 300 V, 32 A, 19", 9 HU
General Parameters
- Applications :Industry, Telecom, Medical, Components, Broadcast, Residential, Renewable Energy, Automotive
- Coupling :L, N, PE all combinations, Line to line, Line(s) to ground, Line to PE
- Current :32 A
- Dimensions :19"/9 HU, 500 mm depth
- Display :7“ touch screen
- EMC Standards :ANSI/IEEE C62.41, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-11, IEC 61000-4-12, IEC 61000-4-29, EN 61000-6-1, EN 61000-6-2, ECE-R10, EN 300329, EN 300340, EN 300342-1, EN 300386 V1.3.2, EN 301489-1, EN 301489-17, EN 301489-24
- Functions :EFT / Burst, Surge Combination Wave, Ringwave
- Interface :USB A, USB B, LAN
- Operating Temperature :10 to 35 Degree C
- Phase Synchronization :0 to 360 Degrees, Resolution 1 Degree
- Polarity :Positive, Negative, Alternate
- Power Consumption :75 W
- Pulse Width :50 nS
- Repetition Time :10 ms to 9999 s
- Rise Time :0.2 uS to 5 nS
- Source Impedance :12 Ohms, 30 Ohms, 50 Ohms
- Spike Frequency :1 Hz to 1 MHz
- Storage Temperature :-10 to 60 Degree C
- Test duration :0:01 min - endless
- Trigger :Automatic, Manual, External
- Weight :40 kg
- Burst Duration :0.1 to 9999 ms
- Burst Voltage :5.5 kV
- Pulse Duration :20 to 720 uS
- Ringwave Voltage :7 kV
- Supply Voltage :300 V
- Surge Voltage :7 kV
