HS-062-20-R-NF
EMC Antenna by Fei Teng Wireless Technology (93 more products)
Request Quote
Note: Your Quotation Request will be directed to Fei Teng Wireless Technology.

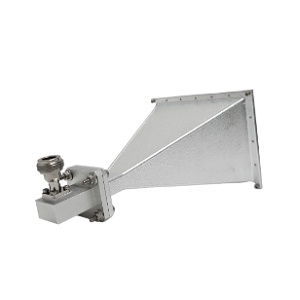

The HS-062-20-R-NF from Fei Teng Wireless Technology is a EMC Antenna with Frequency 12.4 to 18 GHz, Gain 20 dB, Input Power 350 W, Horizontal BW 19 Degree, Vertica BW 18 Degree. More details for HS-062-20-R-NF can be seen below.
Product Specifications
Product Details
- Part Number :HS-062-20-R-NF
- Manufacturer :Fei Teng Wireless Technology
- Description :WR62 12.4 to 18 GHz 20 dbi Standard Gain Horn Antenna with Radome, UDR Flange, N-Female Connector
General Parameters
- Frequency :12.4 to 18 GHz
- Type :Horn
- Directionality :Directional
- Gain :20 dB
- Polarization :Vertical, Horizontal
- Input Power :350 W
- VSWR :1.30:1
- Horizontal BW :19 Degree
- Vertica BW :18 Degree
- Dimensions :83.1 x 104.5 x 170.2 mm
- Connectors :N Type, N Type - Female
- Waveguide :WR-62
- Weight :0.18 Kg
- Note :Flange : UG-419/U, UG541A/U
