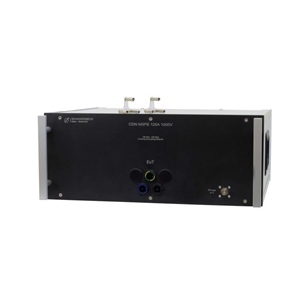

CDN M3PE 125A 1000V
Coupling Decoupling Network by Schwarzbeck Mess - Elektronik OHG (43 more products)
Download Datasheet
Request Quote
Note: Your Quotation Request will be directed to Schwarzbeck Mess - Elektronik OHG.
The CDN M3PE 125A 1000V from Schwarzbeck Mess - Elektronik OHG is a Coupling Decoupling Network with Frequency 150 kHz to 230 MHz, Input Power 6 W, EUT Current 125 A. More details for CDN M3PE 125A 1000V can be seen below.
Product Specifications
Product Details
- Part Number :CDN M3PE 125A 1000V
- Manufacturer :Schwarzbeck Mess - Elektronik OHG
- Description :150 kHz to 230 MHz Coupling Decoupling Networks
General Parameters
- Frequency :150 kHz to 230 MHz
- Cable Type :Main, Unscreened, Unbalanced
- EMC Standards :IEC 61000-4-6
- Common Mode Impedance :150 Ohms
- Input Power :6 W
- Voltage Division Factor :10 dB
- RF Test Voltage :30 V
- EUT Current :125 A
- Dimensions :448 x 191 x 470 mm
- Connectors :BNC, BNC - Female
- Connector AE :Multi-Contact KBT6AR-N/25-S-L
- Connector EUT :Multi-Contact KBT6AR-N/25-S-L
- Applications :Conducted Immunity Testing
- Weight :13 kg
Technical Documents
- Datasheet
